Quick Details

  • Condition: New
  • Brand Name: Map Power
  • Model Number: ZL20
  • Place of Origin: Shandong, China (Mainland)
  • Type: Front Loader
  • Moving Type: Wheel Loader
  • Dimension(Long * Breadth * High): 5850X2050X2860mm
  • Rated Load: 2000KG/2 Ton
  • Certification: CE, CE
  • Warranty: one year
  • After-sales Service Provided: Overseas service center available
  • Name: lego technic Hydraulic wheel loader ZL20F
  • Engine: YTO 4108/WeiChai 4105
  • Drive: 4X4 wheel
  • MOQ: 1Unit/Units
  • Bucket capacity: 1.2m3
  • Option: Cummins engine
  • Packaging details: 2 units in 1 40'HQ container
  • Payment terms: T/T L/C
  • Supply ability: 200 Unit/Units per Month

Packaging & Delivery

Packaging Details: 2 units in 1 40'HQ container
Delivery Detail: Shipped in 20 days after payment

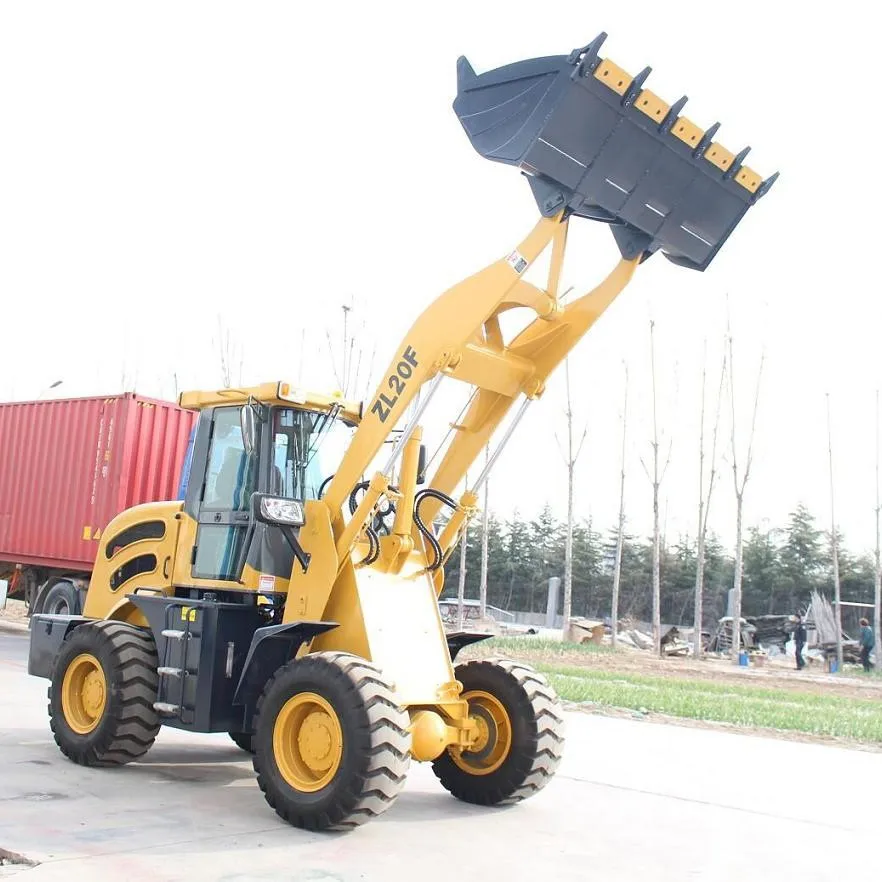

2.0T lego technic Hydraulic wheel loader ZL20F sale in Canada

Main Description for ZL20F wheel loader



Main standard Bucket, Luxury Cabin, CE Certificated Engine, Adjustable Steering Wheel ,130W Heater, 220V Engine Heater, Lock For Lifting and Steering Cylinder, Backward Imagine, Tipping Cabin, Hydraulic Joystick , Disc-Brake Hydraulic-Pressure Check System, Blinking Lamp Without Key And Easy-wearing parts



1.CE Certification.

2.Fully Hydraulic Converter Driving System.

3.China Factory Direct Sale to Customers.

4.New Cabin With Roomy Space and Nice View For Driver.

5. More Kinds of Safe and Effective Attachments Suitable for loader



  Optional accessories for wheel loader

1.Grappler

2.Road Sweeper

3.Snow Blower

4. 4 In 1 Bucket

5.Hydraulic Adjustable Pallet Fork

6.Auger

7.Snow plow or V Snow plow

8.Snow bucket and biger tires

9.Backhoe

10.Drum Folder



Weifang Map Power Co., Ltd.,is a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.


Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.



Overall Dimension

1

Length(with bucket on ground)

5850(mm)

2.

Width(to outside of wheels)

2050(mm)

3

Height(To the top of the cab)

2860(mm)

4

Wheel base

2400(mm)

5

Tread

1640(mm)

6

Min. ground clearance

310(mm)

Main Technical Specification

1

Rated load

2000(Kg)

2

Operating weight

5800KG

3

Rated bucket capacity

1.2(CBM)

4

Bucket type

Heavy-duty bolt teeth

5

Max. breakout force

51kN

6

Max. dump clearance

2950(mm)

7

Min. turning radius

5251mm

8

Driving system

Hydraulic converter

9

Traveling speed(Km/h)

2 forward and 2 reverse

Diesel engine

1

Model

YTO 4108/WeiChai 4105

2

Type

In-line arrangement. Water cooling

3

Rated output

60(kW)/58KW

4

Inter-bore of cylinder/stroke

105×125mm

5

Rated speed

2400(r/min)

6

Max. Torque

275(N.M)

7

Starting type

Electric

8

Min. specific fuel consumption

235(g/Kw.h)

Transmission System

(A)Torque Converter

1

Model

YJ280

2

Type

Fixed-spindle power shift

3

Cooling type

Pressure oil circulating

(B)Transmission case

1

Model

MAP

2

Type

Power shift, spur gear constantly in mesh

3

Gear shift position

2 Forward and 2 reverse gears

(C)Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Size of tire

20.5/70-16,16.70-20 for optional

Brake system

1

Service brake

Air assisted oil on four wheel

2

Parking brake

Hand operated

Steering System

1

Type

Middle articulated frame with hydraulic power steering
